This file was created from the following Jupyter-notebook: symp_talk_uit2019.ipynb
Interactive version:

import sys
sys.path.insert(0,"../")
import pypillometry as pp
import numpy as np
import pandas as pd
import pylab as plt
import scipy
import scipy.signal as signal
from scipy.stats import pearsonr
import itertools
from joblib import Parallel, delayed
from IPython.utils import io
import plotnine as gg
import os

Estimation of tonic and phasic pupillometric signals

Matthias Mittner

pupil-symposium, 6.2.2020

Universitetet i Tromsø

Data model

• pupil signal is made up of a slowly (<.1 Hz) fluctuating process

• and stereotypic responses to (internal or external):

  • Pupil-response function (PRF)

• the amplitude of the events is variable over time

• the shape of the PRF is fixed per subject or can vary over time

plt.figure(figsize=(15,5));
pp.plot_prf()

Simulated (fake) data

dd=pp.create_fake_pupildata(ntrials=100, isi=1100.0, rtdist=(800,100))
d=dd.sub_slice(start=1, end=1.5, units="min")

fac=d._unit_fac("min")
plt.figure(figsize=(15,10))
plt.subplot(311)
plt.plot(d.tx*fac, d.sim_baseline); plt.title("baseline");
plt.ylim(d.sim_baseline.min()-5, d.sy.max())
plt.subplot(312)
x1=pp.pupil_build_design_matrix(d.tx, d.event_onsets, d.fs, d.sim_params["prf_npar"][0], d.sim_params["prf_tmax"][0], 6000)
plt.plot(d.tx*fac, d.sim_response_coef*x1.T); plt.title("events")
plt.subplot(313)
d.plot(interactive=False, units="min")

Estimate tonic and phasic components

• per-trial estimates of tonic/phasic pupillary responses

Traditionally:

• tonic (baseline): mean signal in interval [-200,0] ms before stimulus

• phasic (response):

  • difference peak/max in interval [0,2000] ms post-stimulus to baseline

  • difference mean in time-range of expected peak, e.g., [800,1200] ms post-stim to baseline

d2=dd.sub_slice(4500, 13000, units="ms") # take a small part for visualization


with io.capture_output() as cap:
    tonic_est =d2.stat_per_event((-200,0), statfct=np.mean)
    phasic_est=d2.stat_per_event((-0,2000), statfct=np.max)-tonic_est

plt.figure(figsize=(10,6))
d2.plot(model=False, units="ms")
plt.vlines(d2.event_onsets, *plt.ylim(), color="grey", alpha=0.5)
plt.plot(d2.event_onsets, tonic_est, "o",color="red")
plt.plot(d2.event_onsets, phasic_est+tonic_est, "o",color="blue");
plt.title("Traditional tonic/phasic estimates");

• traditional method can mistake build-up of responses for baseline fluctuations

Novel Algorithm for baseline extraction

• in the absence of events, the pupil goes back to baseline

• therefore: throughs in the the curve are indicative of baseline

Algorithm:

• detect throughs

• find the most “prominent” ones

• create smooth curve through these points that stays below signal

d=pp.create_fake_pupildata(ntrials=50, isi=1500.0, rtdist=(800,100),
                           prop_spurious_events=0.02 )\
    .lowpass_filter(cutoff=2)\
    .scale()\
    .sub_slice(5,25,units="sec")
plt.figure(figsize=(10,5)); d.plot(interactive=False, model=False, units="sec")

• lowest throughs are prioritized

• account for build-up of responses that look like baseline fluctuations

Extract peaks/throughs and rate their prominence

peaks_ix=signal.find_peaks(-d.sy)[0]
prominences=signal.peak_prominences(-d.sy, peaks_ix)[0]
peaks=d.tx[peaks_ix]
plt.figure(figsize=(15,5));
d.plot(model=False, units="sec")
plt.errorbar(peaks/1000., d.sy[peaks_ix], np.vstack((np.zeros_like(prominences), prominences)), 0, "o");

https://en.wikipedia.org/wiki/Topographic_prominence

Smooth curve through peaks…

interp_methods=["nearest","linear","quadratic","cubic"]
plt.figure(figsize=(12,6))
for i,met in enumerate(interp_methods):
    plt.subplot(2,2,i+1)
    f=scipy.interpolate.interp1d(peaks, d.sy[peaks_ix], kind=met, fill_value="extrapolate")
    d.plot(baseline=False, model=False, units="ms")
    plt.plot(d.tx, f(d.tx))
    plt.gca().axes.get_xaxis().set_visible(False)
    plt.ylim(d.sim_baseline.min(), d.sy.max())
    plt.title(met)

• simple interpolate between lower peaks?

Better Solution: B-Spline basis functions

• weighted sum of B-spline basis functions (knots peaks): guarantees smoothness

• customized fit to go through peaks and stay below signal

knots=np.concatenate( ([d.tx.min()], peaks, [d.tx.max()]) ) ## peaks as knots
B=pp.bspline(d.tx, knots, 3)

plt.figure(figsize=(20,8))
plt.subplot(2,1,1)
plt.plot(d.tx, B);
plt.plot(peaks, 0.8+np.zeros_like(peaks), ".");
plt.subplot(2,1,2)

for i in range(10):
    coef=np.random.randn(B.shape[1])
    sig=np.dot(B,coef)
    plt.plot(d.tx, sig, color="grey", alpha=0.2)
plt.plot(peaks, d.sy[peaks_ix], "o", color="red")
d.plot(simulated=False, units="ms");

Staying “below the signal”

ny=800
x=d.tx
pad=0.5
y=np.linspace(d.sy.min()-pad, d.sy.max()+pad, ny)
[X,Y]=np.meshgrid(x,y)

SY=np.tile(d.sy, (ny,1))
py=pp.p_asym_laplac_kappa(-1*(Y-SY), 0, 1, 0.2)

def prominence_to_lambda(w, lam_min=1, lam_max=100):
        w2=lam_min+((w-np.min(w))/(np.max(w-np.min(w))))*(lam_max-lam_min)
        return w2

plt.figure(figsize=(20,5))
d2=d.copy()
start=d.tx[0]
d2.tx=d.tx-start
plt.imshow(py, origin='lower', cmap="jet", aspect="auto", alpha=0.2, extent=[0,d2.tx.max(),d2.sy.min()-pad, d2.sy.max()+pad])
plt.plot(d2.tx, d2.sy, color="green")
plt.errorbar(peaks-start, d2.sy[peaks_ix], yerr=prominence_to_lambda(prominences)/200., fmt="o", color="black", elinewidth=5);

• estimate coefficients B-spline

• criteria:

  1. the curve has to be (almost) completely below the pupil-signal

  2. it should go through the high-prominence peaks with high probability

  3. it should go through the lower-prominence peaks with lower probability

• use: Asymmetric Laplace distribution

• parameters:

  • \(\mu\) (peak location)

  • \(\lambda\) (inverse variance, “wideness”)

  • \(\kappa\) (assymetry parameter)

• distribution centered at signal \(\rightarrow\) \(\mu=0\)

• set asymmetry parameter \(\kappa\) as follows:

  1. specify the probability \(p_a\) that the baseline-curve can take on values above the pupil signal, e.g., \(p_a=0.05\)

  2. using the properties of the distribution determine

     \[\kappa=\frac{\sqrt{p_a}}{\sqrt{1-p_a}}\]

• no matter what \(\lambda\) is chosen, the negative part of the distribution will integrate to \(p_a\)

mu=0
lam=5
pa=0.05
kappa=np.sqrt(pa)/np.sqrt(1-pa)
print("kappa=",kappa)

plt.figure(figsize=(10,5))
y=np.linspace(-1,10,500)
py=pp.p_asym_laplac_kappa(y,0,5,kappa)
plt.plot(y,py)
propneg=np.sum(py[y<=0])/np.sum(py)
print("Proportion negative=",propneg)

kappa= 0.22941573387056177
Proportion negative= 0.052898137321281825

prominence of the peaks

• map the prominence of the peaks to the width of this distribution:

  • mapping prominence \(\rightarrow\) \(\lambda\)

• how far below the signal can the baseline go? parameter: \(\lambda_{sig}\)

• assume z-transformed PD, so 1 unit is pretty large: \(\lambda_{sig}=1\)

• for the highest-prominence peaks, the baseline-curve “snuggles” tightly against the signal

• \(\lambda_{max}=100\)

plt.figure(figsize=(15,5))
lam_sig=1.0
lam_max=100.0
y=np.linspace(-1,10,500)
py1=pp.p_asym_laplac_kappa(y,0,lam_sig,kappa)
py2=pp.p_asym_laplac_kappa(y,0,lam_max,kappa)
plt.subplot(121); plt.plot(y,py1); plt.title(r"$\lambda_{sig}=$%s"%lam_sig);
plt.subplot(122); plt.plot(y,py2); plt.title(r"$\lambda_{max}=$%s"%lam_max);

• the signal should be closer to the lower peaks than to the rest of the signal but can still go away if the prominence is very low

• we therefore set the lower boundary for \(\lambda\) for any peak to be the same as for the rest of the signal \(\lambda_{min}=\lambda_{sig}\)

• define mapping

  \[\text{prominence}\rightarrow \lambda\]

• such that \(\lambda \in [\lambda_{min},\lambda_{max}]\) and higher prominence is associated with higher \(\lambda\)

• we start by mapping the (strictly positive) prominence \(\rho_i\) into the interval [0,1] and then map it linearly into \([\lambda_{min},\lambda_{max}]\)

  \[\lambda_i=\lambda_{min}+\frac{\rho_i-\min_i\rho_i}{\max_i(\rho_i-\min_i\rho_i)}\left(\lambda_{max}-\lambda_{min}\right)\]

# convert
w=prominence_to_lambda(prominences)

plt.figure(figsize=(20,5))
plt.subplot(121)
plt.hist(w);
plt.title(r"Distribution of the $\lambda$ values");
plt.subplot(122)
y=np.linspace(-0.5,2,500)
for i,cw in enumerate(w):
    py=pp.p_asym_laplac_kappa(y, 0, cw, kappa)
    plt.plot(y,py, color="grey", alpha=0.5)
plt.title(r"Distributions for these $\lambda$ values");

Estimate baseline

• implemented as Bayesian model (Stan)

• free parameters are the spline-coefficients

d=d.estimate_baseline(method="envelope_iter_bspline_1")
plt.figure(figsize=(15,5)); d.plot((6, 22),units="sec",model=False)

WARNING:pystan:Automatic Differentiation Variational Inference (ADVI) is an EXPERIMENTAL ALGORITHM.
WARNING:pystan:ADVI samples may be found on the filesystem in the file `/var/folders/28/_ftmv1_n41n48znrymwflm940000gp/T/tmphamv9sz1/output.csv`
WARNING:pystan:Automatic Differentiation Variational Inference (ADVI) is an EXPERIMENTAL ALGORITHM.
WARNING:pystan:ADVI samples may be found on the filesystem in the file `/var/folders/28/_ftmv1_n41n48znrymwflm940000gp/T/tmp6hpwu7k6/output.csv`

Using cached StanModel

• baseline seems to “high”

• because of accumulation of pupil-responses to stimuli

• solution:

  1. estimate responses riding on top of signal

  2. remove them

  3. repeat baseline estimation

base1=d.baseline
d=d.estimate_baseline(method="envelope_iter_bspline_2")
plt.figure(figsize=(15,5)); d.plot((6,22), units="sec",model=False)

WARNING:pystan:Automatic Differentiation Variational Inference (ADVI) is an EXPERIMENTAL ALGORITHM.
WARNING:pystan:ADVI samples may be found on the filesystem in the file `/var/folders/28/_ftmv1_n41n48znrymwflm940000gp/T/tmp_d5qeetp/output.csv`
WARNING:pystan:Automatic Differentiation Variational Inference (ADVI) is an EXPERIMENTAL ALGORITHM.
WARNING:pystan:ADVI samples may be found on the filesystem in the file `/var/folders/28/_ftmv1_n41n48znrymwflm940000gp/T/tmp59y5ghp7/output.csv`

Using cached StanModel

Summary Algorithm baseline-extraction

1. find throughs in signal

2. rate them by prominence

3. create B-spline basis-functions at location of throughs

4. estimate B-coefficients using Bayesian model \(\rightarrow\) first estimate for baseline

5. subtract baseline from signal

6. estimate response-model using default PRF and subtract from data

7. repeat steps 1. - 4. to get final baseline estimate

Pupil-response function (PRF)

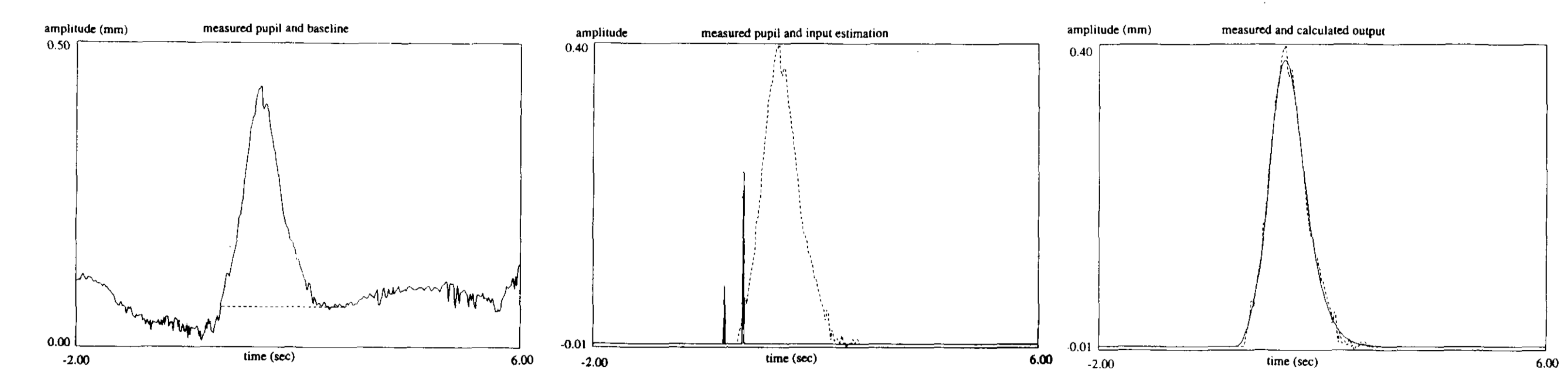

• Hoeks + Levelt, 1993 measured resonse to attentional stimulus

• model:

  \[h(t)=t^{n}e^{-nt/t_{max}}\]

pupil-response function model: \(h(t)=t^{n}e^{-nt/t_{max}}\)

• parameters: location (\(t_{max}\)) and spread (\(n\))

plt.figure(figsize=(15,5)); plt.subplot(1,2,1)
pp.plot_prf(npar=10, tmax=500,label="tmax=500")
pp.plot_prf(npar=10, tmax=900,label="tmax=900")
plt.legend();
plt.subplot(1,2,2)
pp.plot_prf(npar=5, tmax=900,label="n=5")
pp.plot_prf(npar=20, tmax=900,label="n=20")
plt.legend();

## data extract from original paper and saved in a CSV file
hl_data=pd.read_csv("../data/stuff/tabula-Hoeks-Levelt1993_Article_PupillaryDilationAsAMeasureOfA.csv", sep=";")
hl_data["tmax"]=hl_data["tmax"]*1000. ## our implementation uses ms, HL use seconds
## between-subject variability
hl_per_subj=hl_data.groupby("subj").aggregate([np.mean,np.std])[["n","tmax"]]
hl_between=hl_per_subj.aggregate([np.mean,np.std]).filter(like="mean", axis=0)
hl_between

	n		tmax
	mean	std	mean	std
mean	10.340833	3.349051	917.0	135.357865

from matplotlib.gridspec import GridSpec


fig=plt.figure(figsize=(15,5))
gs = GridSpec(1, 4, figure=fig)
ax1 = fig.add_subplot(gs[0, 0])
ax2 = fig.add_subplot(gs[0, 1])
ax3 = fig.add_subplot(gs[0, 2:4])

#plt.subplot(131)
ax1.hist(hl_data.n[hl_data.n.notnull()])
ax1.set_title("n")
#plt.subplot(132)
ax2.hist(hl_data.tmax[hl_data.tmax.notnull()]);
ax2.set_title("tmax");
#plt.subplot(133)

mn,sdn,mtmax,sdtmax=np.array(hl_between)[0]
nrep=100
duration=4000
fs=1000.
n=int(duration/1000*fs)
t = np.linspace(0,duration, n, dtype = np.float) # in ms

ns=np.random.randn(nrep)*sdn+mn
tmaxs=np.random.randn(nrep)*sdtmax+mtmax

#plt.figure(figsize=(10,5))
for i in range(nrep):
    h=pp.pupil_kernel(duration=duration, fs=fs, npar=ns[i], tmax=tmaxs[i])
    ax3.plot(t,h,color="grey", alpha=0.5)

h=pp.pupil_kernel(duration=duration, fs=fs, npar=mn, tmax=mtmax)
ax3.plot(t,h,color="red",linewidth=2)
ax3.set_title("Between-subject variation in PRF");

Signal modeled as sequence of responses (PRFs)

d3=pp.create_fake_pupildata(ntrials=10, isi=5000.0, rtdist=(2000,100))
X=pp.pupil_build_design_matrix(d3.tx, d3.event_onsets, d3.fs, 10, 900)
plt.figure(figsize=(20,5));
plt.subplot(211); plt.plot(d3.tx, X.T); plt.vlines(d3.event_onsets, *plt.ylim(), color="grey"); plt.title("slow paradigm");
plt.subplot(212); plt.plot(d3.tx, np.sum(X.T, axis=1)); plt.vlines(d3.event_onsets, *plt.ylim(), color="grey");

d4=pp.create_fake_pupildata(ntrials=10, isi=750.0, rtdist=(500,100))
d4=d4.sub_slice(5000, 15000, units="ms")
X=pp.pupil_build_design_matrix(d4.tx, d4.event_onsets, d4.fs, 10, 900)
plt.figure(figsize=(20,5));
plt.subplot(211); plt.plot(d4.tx, X.T); plt.vlines(d4.event_onsets, *plt.ylim(), color="grey"); plt.title("fast paradigm");
plt.subplot(212); plt.plot(d4.tx, np.sum(X.T, axis=1)); plt.vlines(d4.event_onsets, *plt.ylim(), color="grey");

Assumptions

• shape of PRF constant for each person

• magnitude of the PRF varies by trial \(\rightarrow\) target of this analysis

\(\Rightarrow\) can we recover the magnitudes?

coef=np.abs( np.random.randn(d4.nevents()) )

plt.figure(figsize=(20,5));
plt.subplot(211); plt.plot(d4.tx, X.T*coef); plt.vlines(d4.event_onsets, *plt.ylim(), color="grey"); plt.title("fast paradigm");
plt.subplot(212); plt.plot(d4.tx, np.sum(X.T*coef, axis=1)); plt.vlines(d4.event_onsets, *plt.ylim(), color="grey");

d5=pp.create_fake_pupildata(ntrials=10, isi=750.0, rtdist=(500,100), prop_spurious_events=0)
#d5=d5.sub_slice(5,12,units="sec")
d5=d5.lowpass_filter(cutoff=2)

d5.sy=d5.sy-d5.sim_baseline ## remove baseline for now
coef=d5.sim_response_coef   ## these are the simulated magnitudes

with io.capture_output() as cap:
    d5=d5.estimate_response()
    naive_response=d5.stat_per_event([800,1200])-d5.stat_per_event([-200,0])

Algorithm for estimating response

• build regressors by “putting” a PRF at each “event”

Algorithm for estimating response

• fit linear model (non-negative least-squares algorithm, NNLS)

plt.figure(figsize=(10,5));
d5.plot((5, 12),simulated=False,response=True,units="sec")
plt.title("Near-perfect recovery of the simulated responses");

print("Correlation(real, new method) = %.2f"%pearsonr(coef, d5.response_pars["coef"])[0])

# compared to naive estimates
print("Correlation(real, traditional)= %.2f"%pearsonr(coef, naive_response)[0])

Correlation(real, new method) = 1.00
Correlation(real, traditional)= 0.45

Baseline+Response estimation together…

for the naive estimator

d6=pp.create_fake_pupildata(ntrials=100, isi=750.0, rtdist=(300,100), prop_spurious_events=0)\
    .downsample(fsd=20).scale()

real_baseline=pp.stat_event_interval(d6.tx, d6.sim_baseline, d6.event_onsets, [0,0])
real_response=d6.sim_response_coef
naive_baseline=d6.stat_per_event([-200,0])
naive_response=d6.stat_per_event([800,1200])-naive_baseline

print("BL      : Correlation(real, traditional) = %.2f"%pearsonr(real_baseline, naive_baseline)[0])
print("Response: Correlation(real, traditional) = %.2f"%pearsonr(real_response, naive_response)[0])

BL      : Correlation(real, traditional) = 0.61
Response: Correlation(real, traditional) = 0.48

for the new method

with io.capture_output() as cap:
    d6=d6.estimate_baseline()\
        .estimate_response(npar=10.35, tmax=917)

    est_baseline=pp.stat_event_interval(d6.tx, d6.baseline, d6.event_onsets, [0,0])
    est_response=d6.response_pars["coef"]

print("BL      : Correlation(real, new method) = %.2f"%pearsonr(real_baseline, est_baseline)[0])
print("Response: Correlation(real, new method) = %.2f"%pearsonr(real_response, est_response)[0])

WARNING:pystan:Automatic Differentiation Variational Inference (ADVI) is an EXPERIMENTAL ALGORITHM.
WARNING:pystan:ADVI samples may be found on the filesystem in the file `/var/folders/28/_ftmv1_n41n48znrymwflm940000gp/T/tmpzi6u8bjn/output.csv`
WARNING:pystan:Automatic Differentiation Variational Inference (ADVI) is an EXPERIMENTAL ALGORITHM.
WARNING:pystan:ADVI samples may be found on the filesystem in the file `/var/folders/28/_ftmv1_n41n48znrymwflm940000gp/T/tmpdml_2tz7/output.csv`

BL      : Correlation(real, new method) = 0.78
Response: Correlation(real, new method) = 0.84

Simulated data example

plt.figure(figsize=(15,8))
d6.plot((15,70), units="sec",interactive=False, simulated=True)

Validation of the method

• dependence of tonic/phasic recovery as a function of the tuning parameters of the algorithm

• robustness of method

  • against noise-level

  • against mis-specification (PRF pars)

  • against unknown “events”

• performance for different designs (ISI/RT)

Outcome variable: Correlation with “true” baseline/response coefficients

Validation

setting tuning parameters

• scanning the tuning parameters for the B-Spline based baseline estimation

• lam_sig (float) - parameter steering how much the baseline is shaped by the non-peaks of the signal

• lam_min,lam_max (float) – parameters mapping how much low- and high-prominence peaks influence the baseline

• niter (1 or 2) - use 1 or two iterations of the procedure

nbname="tonic_phasic_validation"
path="stuff/results/"
sim_label="tonic_phasic5"
fname=os.path.join(path,"{nb}_{sim}.ft".format(nb=nbname,sim=sim_label))
res=pd.read_feather(fname)
colnames=np.array(res.columns)[:-2]
df=pd.melt(res, id_vars=colnames, value_vars=["est_bl","naive_bl"])
df["estimate"]=["new" if "est" in v else "naive" for v in df.variable]
df["method"]=df[['estimate', 'niter']].astype(str).apply('-'.join, axis=1)
(gg.ggplot(df, gg.aes(x="lam_sig", y="value",color="method"))+
     gg.stat_summary(fun_y=np.median,
                     fun_ymin=lambda y: np.mean(y)-np.std(y),#np.quantile(y,0.05),
                     fun_ymax=lambda y: np.mean(y)+np.std(y),#np.quantile(y,0.95),
                     geom="pointrange", position=gg.position_dodge(.02))+
     gg.stat_summary(fun_y=np.median, geom="line", position=gg.position_dodge(.02))+
 gg.theme_bw()+
 gg.ylim(0.4,.8)+gg.ylab("Correlation")+gg.facet_grid("~lam_max")+
 gg.theme(figure_size=(12,3))+gg.scale_x_log10()
).draw();

• using 2 iterations generally better

• method works for a broad range of parameter-values

• getting lam_sig right is more important than lam_max

Validation

influence of design on performance

• manipulate experimental design parameters

  • proportion of “unknown” events

  • inter-stimulus interval (ISI)

sim_label="tonic_phasic1"
fname=os.path.join(path,"{nb}_{sim}.ft".format(nb=nbname,sim=sim_label))
res=pd.read_feather(fname)
colnames=np.array(res.columns)[:-4]
df=pd.melt(res, id_vars=colnames, value_vars=["est_bl","est_resp","naive_bl","naive_resp"])
df["tonic_phasic"]=["tonic" if "bl" in v else "phasic" for v in df.variable]
df["estimate"]=["new" if "est" in v else "naive" for v in df.variable]
(gg.ggplot(df, gg.aes(x="prop_spurious", y="value",color="estimate"))+
     gg.stat_summary(fun_y=np.median,
                     fun_ymin=lambda y: np.median(y)-np.std(y),#np.quantile(y,0.05),
                     fun_ymax=lambda y: np.median(y)+np.std(y), #np.quantile(y,0.95),
                     geom="pointrange", position=gg.position_dodge(.02))+
     gg.stat_summary(fun_y=np.median, geom="line", position=gg.position_dodge(.02))+
 gg.theme_bw()+
 gg.ylim(0,1)+gg.ylab("Correlation")+gg.facet_grid("tonic_phasic~isi")+
 gg.theme(figure_size=(12,4.5))
).draw();

• new method always better

• fast-paced designs harder to estimate

• more unmodelled events (mind-wandering?) \(\rightarrow\) worse performance

• tonic levels more difficult to estimate than phasic response

Validation

influence of misspecification

• simulate data with a set of npar/tmax parameters (this is what is being manipulated)

• recover using standard “wrong” pars (those are fixed, i.e., using the mean only)

sim_label="tonic_phasic2"
fname=os.path.join(path,"{nb}_{sim}.ft".format(nb=nbname,sim=sim_label))
res=pd.read_feather(fname)
colnames=np.array(res.columns)[:-4]
df=pd.melt(res, id_vars=colnames, value_vars=["est_bl","est_resp","naive_bl","naive_resp"])
df["tonic_phasic"]=["tonic" if "bl" in v else "phasic" for v in df.variable]
df["estimate"]=["new" if "est" in v else "naive" for v in df.variable]
(gg.ggplot(df, gg.aes(x="tmax_diff", y="value",color="estimate"))+
     gg.stat_summary(fun_y=np.median,
                     fun_ymin=lambda y: np.quantile(y,0.05),
                     fun_ymax=lambda y: np.quantile(y,0.95), geom="pointrange", position=gg.position_dodge(.02))+
     gg.stat_summary(fun_y=np.median, geom="line", position=gg.position_dodge(.02))+
 gg.theme_bw()+
 gg.ylim(0,1)+gg.ylab("Correlation")+gg.facet_grid("tonic_phasic~npar_diff")+
 gg.theme(figure_size=(12,5))
).draw();

• npar - misspecification does not matter much

• tmax important to get right, both for traditional and new method

• shorter pulses (low tmax) beneficial for baseline-estimation (less build-up)

Validation

compensate for misspecation

• is it possible to compensate for tmax-misspecification by estimating tmax from data?

sim_label="tonic_phasic4"
fname=os.path.join(path,"{nb}_{sim}.ft".format(nb=nbname,sim=sim_label))
res=pd.read_feather(fname)
colnames=np.array(res.columns)[:-4]
df=pd.melt(res, id_vars=colnames, value_vars=["est_bl","est_resp","naive_bl","naive_resp"])
df["tonic_phasic"]=["tonic" if "bl" in v else "phasic" for v in df.variable]
df["estimate"]=["new" if "est" in v else "naive" for v in df.variable]
(gg.ggplot(df, gg.aes(x="tmax_diff", y="value",color="estimate"))+
     gg.stat_summary(fun_y=np.median,
                     fun_ymin=lambda y: np.quantile(y,0.05),
                     fun_ymax=lambda y: np.quantile(y,0.95), geom="pointrange", position=gg.position_dodge(.02))+
     gg.stat_summary(fun_y=np.median, geom="line", position=gg.position_dodge(.02))+
 gg.theme_bw()+
 gg.ylim(0,1)+gg.ylab("Correlation")+gg.facet_grid("tmax_fit~tonic_phasic")+
 gg.theme(figure_size=(12,4.5))
).draw();

• estimating tmax allows broader range of misspecification

• SD for tmax from Hoeks & Levelt (1997) was 135 ms, so feasible range should cover most subjects

Future directions

• validate method on real data

• include auto-correlation for response-estimation?

• trial-by-trial variations for the PRF-parameters?

• include pupillary hippus (stronger tonic fluctuations at low baseline levels)

This file was created from the following Jupyter-notebook: symp_talk_uit2019.ipynb
Interactive version:
